Product Details:
|
| Shape: | Round, Square, Rectangular Or Other Customized Shapes | Application: | Metallurgy And Casting Metal Liquid Filtration And Purification |
|---|---|---|---|
| Feature: | Light Weight；Large Surface Area Through-hole Rate；high Pass Rate ；Good Chemical Stability And Corrosion Resistance ；High Mechanical Strength；High Thermal Shock Resistance | Density: | 0.3-0.5g/cm3 |
| Highlight: | Cast Iron Foam Ceramic Filter,Non Ferrous Alloys Foam Ceramic Filter,0.5g/cm3 ceramic foam filter |
||

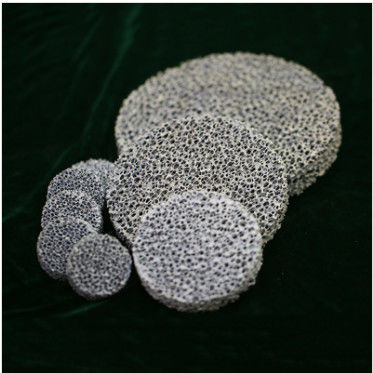

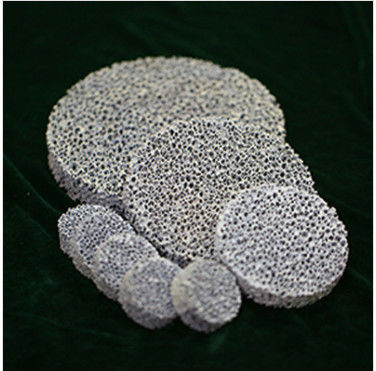

Porous Silicon Carbide foundry foam ceramic filter
Silicon Carbide foundry foam ceramic filter for filtration of cast iron and non-ferrous alloys
Silicon Carbide foundry foam ceramic filter mainly for filtration of cast iron and non-ferrous alloys. With their excellent resistance to attack and corrosion from molten iron liquid, they can effectively remove inclusions, reduce trapped gas from liquid metal and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.
| Filter type | Ceramic Foam Filters | Extruded Filter | ||
| Filter Materials | Alumina | SiC | Zirconia | Cordierite-Mullite |
| Applications | Aluminum and aluminum alloy |
Iron, Iron alloy, copper, bronze and brass |
Steel, Stainless steel and alloy |
Grey iron, ductile iron, aluminum alloy and other non-ferrous alloys |
| Volume Density (g/cm3) | 0.4 - 0.5 | 0.3 - 0.5 | 0.7 - 1.0 | 0.8 - 1.2 |
| Hole Density (ppi) | 10 - 40 | 8-30 | 10-30 | 100 – 300 |
| Open Porosity (%) | 80 - 90 | 80 - 90 | 80 - 90 | 35 - 60 |
| Maximum Working Temperature (°C) |
1100 | 1500 | 1700 | > 1500 |
| Compressive Strength (MPa) | 0.8 | 1 | 1.5 | > 2 |
| Bending Strength (MPa) | 0.6 | 2.5 | 1 | |
| Thermal Shock Resistance (times from1100°C to room temperature) |
6 | 6 | 3 | 5 |

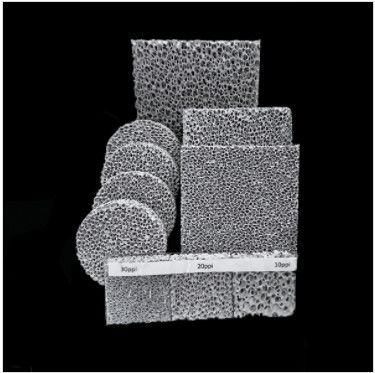

SiC Ceramic Foam Filters is available in all standard dimensions and different thickness. The most common porosities are PPI 10, 20 and 30; higher porosities are available upon request. Custom-made cut-to-size filters are also possible.
Advantage:
Filter the surdries in the castings, reduce the casting splracles, reduce the veins flowing when pouring the casting,reduce surface defects, obviously to improve the final-product rate.
Reduce castings manufacturing duration and the sword and tool damages, improve casting surface manufacturing quality
Strengthen castings anti-pressure and airproof features, strengthen elongate anti-resistance intensity, to improve surface glabrousness
Predigest casting system designing requirement,reduce the length of horizontal casting channel, improve castings technology output rate.
| Physical Properties for Silicon Carbide Ceramic Foam Filters | |
|---|---|
| Working Temperature | ≤1540°C |
| Porosity | 80~90% |
| Compression Strength (Room Temperature) |
≥1.0Mpa |
| Volume Density | 0.3-0.5g/cm3 |
| Thermal Shock Resistance | 1200°C---room temperature 3 times |
| Application | cast iron, cast copper, cast bronze, cast brass high temperature gas filter, chemical fillings and catalysis carrier etc. |
| Chemical Composition for Silicon Carbide Ceramic Foam Filters: | |||
|---|---|---|---|
| Al2O3 | ≤28.00% | SiC | ≥62.00% |
| SiO2 | ≤10.00% | Fe2O3 | ≤0.50% |
| Silicon Carbide Ceramic Foam Filters regular sizes | |||
|---|---|---|---|
| Round shape | 40x11mm, 40x15mm, 50x15mm, 50x20mm, 60x22mm, 70x22mm, 80x22mm , 90x22mm,100x22mm, 305x25mm | ||
| Square shape | 40x40x11mm, 40x40x15mm, 50x50x22mm, 75x75x22mm, 50x75x22mm, 100x75x22mm, 100x100x22mm, 55x55x15mm, 150x150x22mm | ||
| Other sizes can be customized | |||
