Product Details:
|
| Usage: | Industrial Ceramic, Semiconductor, Structure Ceramic, Mechanical Sealing, Thermal Processing, Ceramic Armor For Ballistic Protection Of Personnel, Vehicles And Assets | Type: | Ceramic Parts, Ceramic Rings, Ceramic Rollers, Ceramic Tubes, Ceramic Balls |
|---|---|---|---|
| Material: | Silicon Carbide, Aluminum Oxide, Silicon Nitride, Quartz Ceramics, Refractory Ceramics, Refractory Composite Materials, Electrotechnical Ceramics. | Color: | Black |
| Product Name: | Bearings For Pumps And Compressors; Rings Of Mechanical Seals; Ceramic Plungers; Elements Of Valves And Stop Valves; Lining For Protection From Wear And Corrosion; Sorting Wheels Of Various Grinding Machinery; Lining For Cyclones And Calciners For Cement P | Size: | Customized |
| Density: | ≥3.1g/cm3 | Feature: | Excellent Shape Stability, Thermal Conductivity, Thermal Shock Resistance |
| Highlight: | 30GPa Refractory Technical Ceramics,25 GPa Refractory Technical Ceramics,Customized 3.1g/cm3 refractory ceramics |
||
Technical Ceramics Used For The Production Of Refractory Products

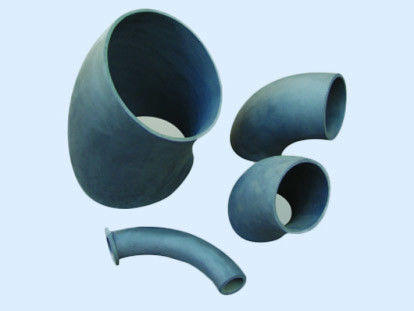

Including Lining And Fittings For Furnace Equipment
Technical ceramics due to its exceptional properties is widely used for the production of refractory products, including lining and fittings of various shapes for furnace equipment:
corrosion resistance;
resistance to heat shock;
stability of shape and strength preservation at the maximum operating temperature;
low weight;
high reliability and economy in operation.
|
Propertioes |
Brand of material |
||
|
|
SCR-Si1 |
SCR-Si2-HP |
SCR-SSCR-S |
|
Composition |
SiC+Si |
SiC+Si+C |
SiC |
|
Density, g/sm3 |
3,05-3,07 |
3,00-3,05 |
3,10-3,15 |
|
Isolated porosity, % |
0 |
0 |
2 |
|
Hardness (at SiC), GPa |
25-30 |
25-30 |
25-30 |
|
Flexural strength, MPa |
320-350 |
270-300 |
380-410 |
|
Compressive strength, MPa |
3300-3500 |
2800-3100 |
3000-3500 |
|
Thermal conductivity at 20-100°С, W/mK |
110-120 |
100-130 |
100-110 |
|
Coefficient of linear thermal |
3,4-4,9 |
3,5-5,0 |
3,0-4,6 |
|
Maximum operating temperature |
|
|
|
|
Oxidative environment |
1350 |
1350 |
1400 |
|
A reducing or inert environment |
1350 |
1350 |
1800 |

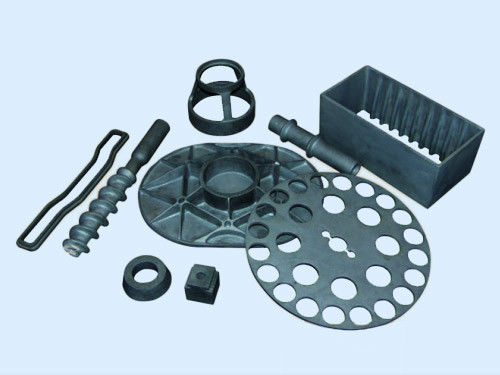

Main products for furnace equipment are:

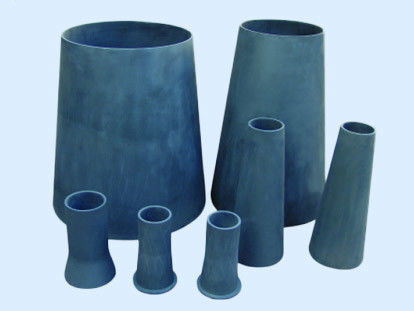

lining of various shapes;

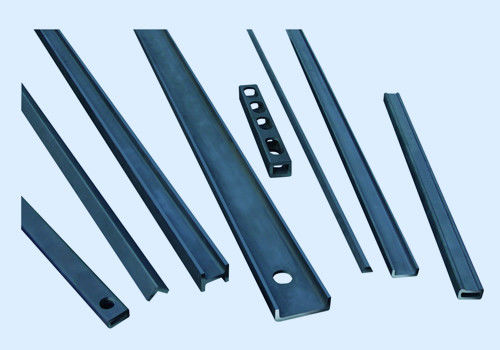

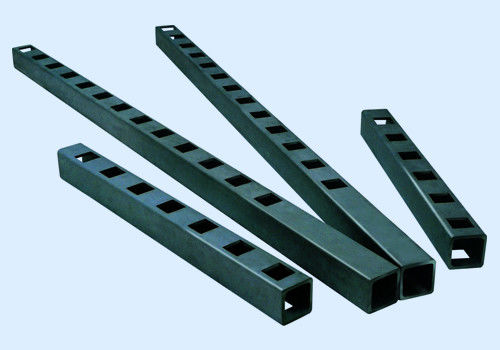

beams, profiles, guides, heater holders, insulating sleeves;

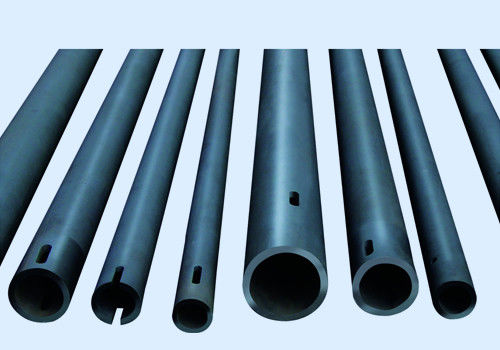

transportation systems, rollers;

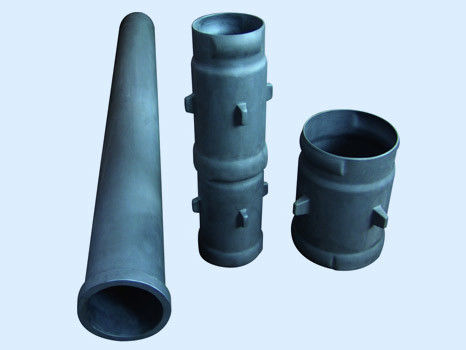

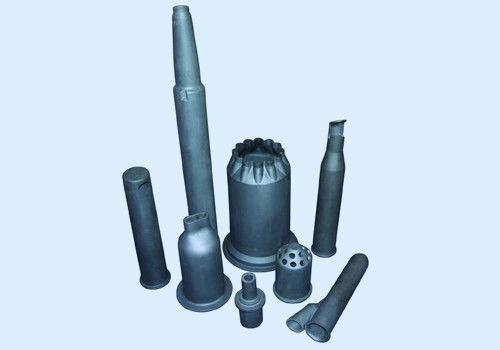

burners;
cooling tubes;

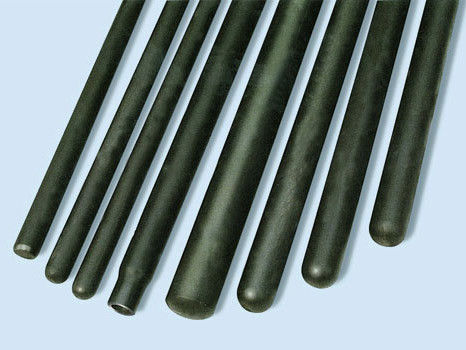

beads, tubes, thermocouple covers.
