Product Details:
|
| Features: | Excellent Wear Resistance; Chemical Inertness; No Grinding In The Product To Be Crushed; Long Service Life | Material: | Graphite |
|---|---|---|---|
| Size: | Customized | Color: | Black |
| Highlight: | Isostatic Molding Graphite Dies,High Density Graphite Rotor Vanes,Isostatic Molding Graphite Rotor Vanes |
||

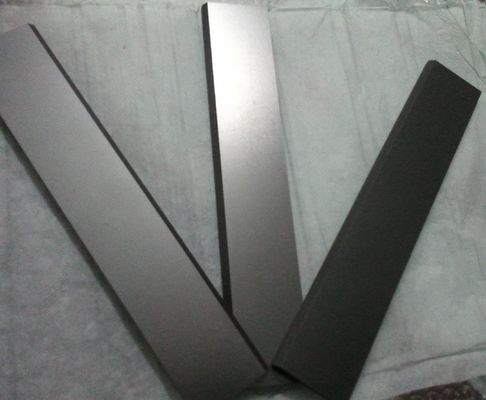

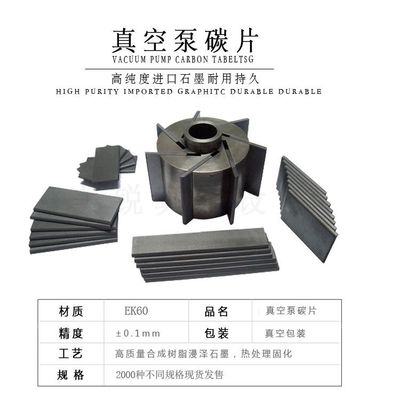

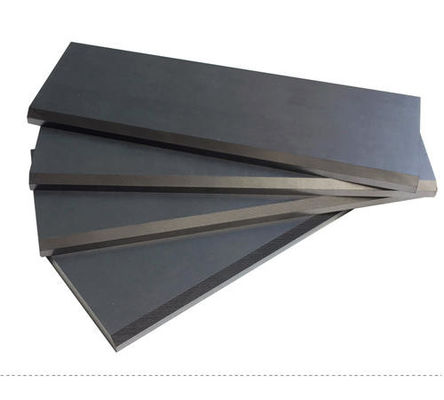

Graphite vanes
Graphite vanes (graphite blades, graphite plates) are used in plated-rotary pumps and dry-type compressors (oil-free).
Material Technical Specifications:
|
Type |
Max Grain size mm |
Bulk Density g/cc |
Specific resistivity μΩ.m |
Flexural Strength Mpa |
Compressive Strength Mpa |
C.T.E(100-600℃) |
Ash % |
|
ZGB-I |
0.8 |
≥1.68 |
≤9.5 |
≥13.0 |
≥28.0 |
≤2.8 |
≤0.3 |
|
ZGB-II |
0.58 |
≥1.72 |
≤8.5 |
≥15.0 |
≥32.0 |
≤2.4 |
≤0.3 |
|
ZGL-0 |
2 |
≥1.58 |
≤11.5 |
≥7.0 |
≥18.0 |
≤3.0 |
≤0.3 |
|
ZGL-I |
2 |
≥1.68 |
≤9.0 |
≥13.0 |
≥28.0 |
≤2.7 |
≤0.3 |
|
ZGDJY-C1 |
22 |
≥1.78 |
≤10 |
≥38.0 |
≥65.0 |
≤3.9 |
≤0.07(Normal) |
|
ZGDJY-Y3 |
22 |
≥1.86 |
≤13.0 |
≥40.0 |
≥80.0 |
≤3.9 |
≤0.07(Normal) |
|
ZGDJY-W5 |
22 |
≥1.85 |
≤12.0 |
≥45.0 |
≥90.0 |
≤4.3 |
≤0.07(Normal) |
|
MY-III |
45 |
≥1.83 |
≤10.0 |
≥38.0 |
≥80.0 |
≤3.5 |
≤0.1 |
|
MY-IV |
45 |
≥1.88 |
≤9.0 |
≥42.0 |
≥90.0 |
≤3.8 |
≤0.07 |
|
If you can not find the material which you need, please kindly contact us ,we will choose apporpiate materialaccording to customer's application (working condition)based on rich experiences in graphite application |
|||||||
We produces vanes made of high-density isostatic molding graphite.
The use of graphite is due to unique properties:
The most common use of graphite vanes is in pumps and compressors of the following companies: Becker, Rietschle, Busch, Orion, Adast, Dominant, Grundfos, Ryobi, Romaior, Heidelberg, Rapida, Ilmvac, Planeta, KNF, Zircon.
The main fields of application of graphite vanes:
We manufactures products from structural brands of graphite, impregnated graphite, antifriction graphite
Graphite has unique properties:
Due to its unique properties, graphite products are used in many industries:
