Product Details:
|
| Features: | Excellent Wear Resistance; Chemical Inertness; No Grinding In The Product To Be Crushed; Long Service Life | Material: | Graphite, Silicon Carbide, |
|---|---|---|---|
| Size: | Customized | Color: | Black |
| Highlight: | Black Carbon Graphite Seal Rings,Carbon Graphite Seal Rings Wear Resistant,Wear Resistant Black Graphite Dies |
||

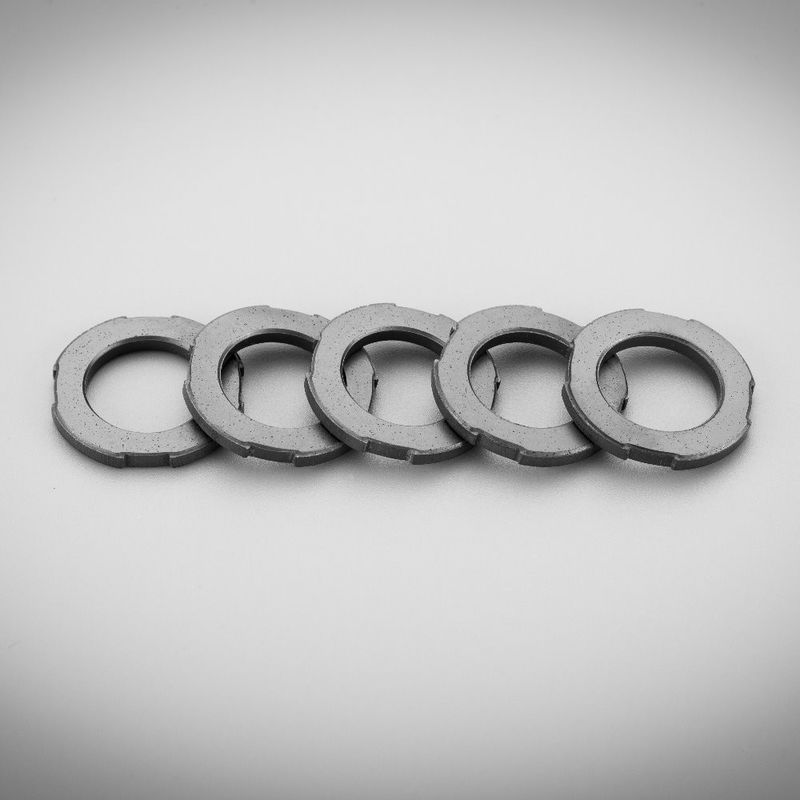

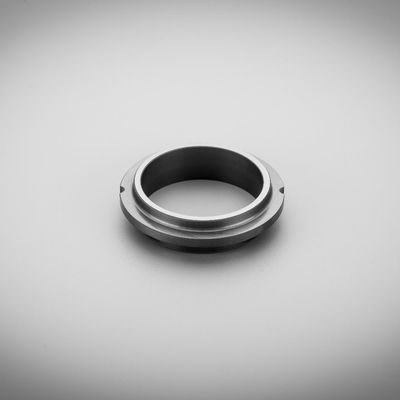

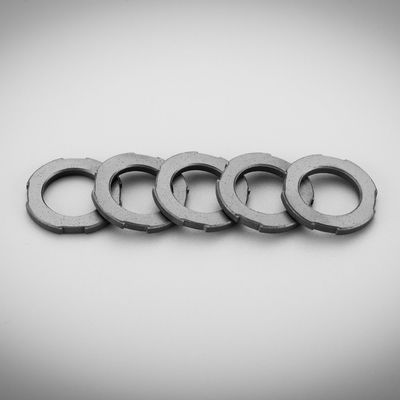

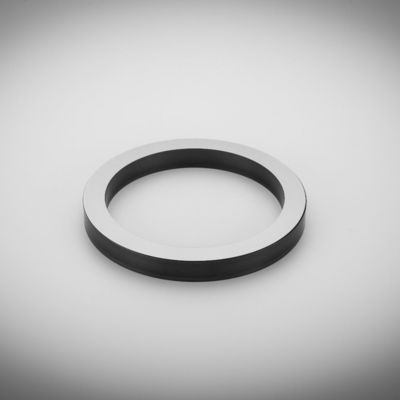

Rings of mechanical seals
Rings of mechanical seals,wear resistance,high modulus of elasticity,low temperature coefficient of linear expansion
An important role in the design of mechanical seals is played by elements directly involved in the process of friction, it is O-rings of mechanical seals. The sealing mechanism, regardless to the mechanical seal design, assumes contact on the flat end of these rings forming a friction pair. From the point of view of assemble reliability, it is extremely important to ensure the operation of a friction pair with the lowest friction and wear coefficients in each particular case. Ring designs and materials are determined by a large set of operational, design and process parameters. Among the main indicators that determine reliability of a friction pair are:
Related Data
| Main component | 99%Al2O3 | S-SiC | ZrO2 | Si3N4 | ||
| Physical Property |
Density | g/cm3 | 3.9 | 3.1 | 6 | 3.2 |
| Water Absorption | % | 0 | 0.1 | 0 | 0.1 | |
| Sinter Temperature | °C | 1700 | 2200 | 1500 | 1800 | |
| Mechanical Property |
Rockwell Hardness | HV | 1700 | 2200 | 1300 | 1400 |
| Bend Strength | kgf/mm2 | 3500 | 4000 | 9000 | 7000 | |
| Compression Intensity | Kgf/mm2 | 30000 | 20000 | 20000 | 23000 | |
| Thermal Property |
Maximum working temperature |
°C | 1500 | 1600 | 1300 | 1400 |
| thermal expansion coefficient 0-1000°C |
/°C | 8.0*10-6 | 4.1*10-6(0-500°C) | 9.5*10-6 | 2.0*10-6(0-500°C) | |
| 5.2*10-6(500-1000°C) | 4.0*10-6(500-1000°C) | |||||
| Thermal Shock resistance | T(°C) | 200 | 250 | 300 | 400-500 | |
| Thermal Conductivity | W/m.k(25°C | 31 | 100 | 3 | 25 | |
| 300°C) | 16 | 100 | 3 | 25 | ||
| Electrical Property |
Resisting rate of Volume | ◎.cm | ||||
| 20°C | >1012 | 106-108 | >1010 | >1011 | ||
| 100°C | 1012-1013 | – | – | >1011 | ||
| 300°C | >1012 | – | – | >1011 | ||
| Insulation Breakdown Intensity |
KV/mm | 18 | semiconductor | 9 | 17.7 | |
| Dielectric Constant (1 MHz) | (E) | 10 | – | 29 | 7 | |
| Dielectric Dissipation | (tg o) | 0.4*10-3 | – | – | – | |
Ceramic materials and cemented carbide meet the above requirements, which makes them widely used for the production of mechanical seal rings. The most widely used reactive silicon carbide, sintered silicon carbide, aluminum oxide and cemented carbide. In a number of cases, as a material of the friction pair, various versions of carbon materials (impregnated graphites, etc.) are used together with ceramics.
All types of ring sizes for mechanical seals are produced in series.
Non-standard rings are made according to customer’s drawings. It is possible to apply grooves on rings for dry gas-dynamic seals.
We manufactures products from structural brands of graphite, impregnated graphite, antifriction graphite
Graphite has unique properties:
Due to its unique properties, graphite products are used in many industries:
