Product Details:
|
| Application: | Honing Stones And Grinding Wheels, Limited Lapping And Electrical Applications | Density: | 1.97 |
|---|---|---|---|
| Color: | Green | Mesh Size: | F12-F220, F240-F1200, JIS240-JIS1500 |
| Highlight: | 1.97g/cm3 Green Silicon Carbide,P220 Green Silicon Carbide,1.97g/cm3 Green SiC |
||

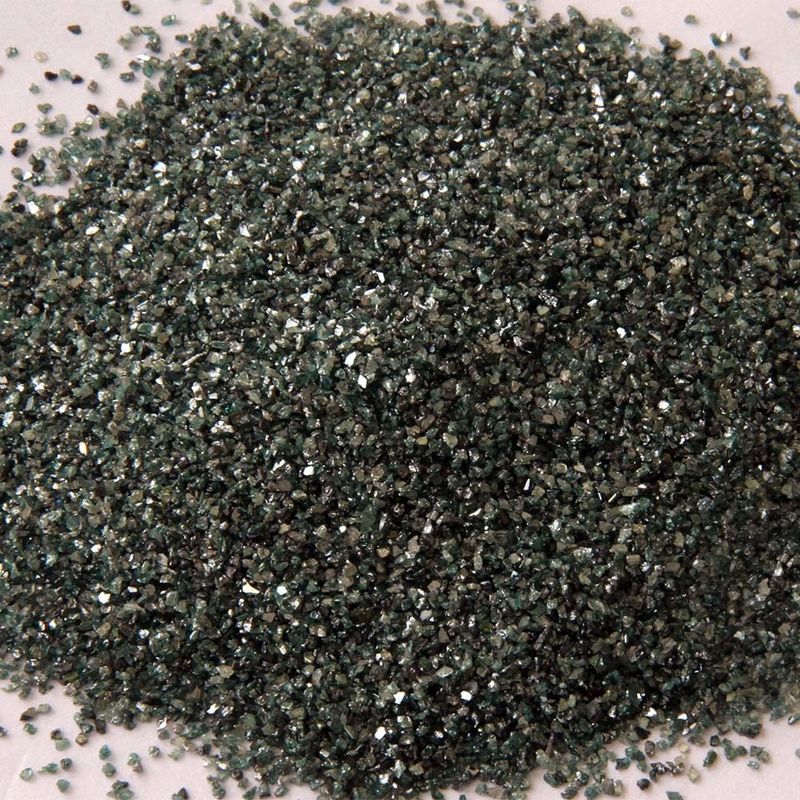

Green Silicon Carbide
Green Silicon Carbide is produced basically in the same manner as black silicon carbide in a resistance type electric furnace with petroleum coke, quartz sand and other materials. The product has greater purity than black silicon carbide and higher hardness. Green silicon carbide is suitable for processing hard metal alloys and non-metallic materials that are hard and brittle such as jewels, optical glass or ceramics. It’s sharp cutting characteristics also make it useful for soft materials such as copper, brass, aluminum, or magnesium.
Green SiC F12-F220
|
SIC ≥ % |
|
F.C ≤ % |
|
Fe2O3 ≤ % |
|
|
|
Normal |
Special |
Normal |
Special |
Normal |
Special |
|
|
F12 – F90 |
98.5 |
99 |
0.2 |
0.1 |
0.6 |
0.2 |
|
F100 – F150 |
98 |
99 |
0.3 |
0.15 |
0.8 |
0.25 |
|
F180 – F220 |
97 |
99 |
0.3 |
0.15 |
1.2 |
0.2 |
Bulk Density
|
Grits |
Normal Bulk Density |
High Bulk Density |
Grits |
Normal Bulk Density |
High Bulk Density |
|
F16 – F24 |
1.42 – 1.50 |
≥ 1.50 |
F100 |
1.36 – 1.45 |
≥ 1.45 |
|
F30 – F40 |
1.42 – 1.50 |
≥ 1.50 |
F120 |
1.34 – 1.43 |
≥ 1.43 |
|
F46 – F54 |
1.43 – 1.51 |
≥ 1.51 |
F150 |
1.32 – 1.41 |
≥ 1.41 |
|
F60 – F70 |
1.40 – 1.48 |
≥ 1.48 |
F180 |
1.31 – 1.40 |
≥ 1.40 |
|
F80 |
1.38 – 1.46 |
≥ 1.46 |
F220 |
1.31 – 1.40 |
≥ 1.40 |
|
F90 |
1.38 – 1.45 |
≥ 1.45 |
|
|
|
Green SiC P12-P220
P10, P12, P14, P20, P24, P36, P60, P80, P100, P120, P150, P180, P220
We can OEM as per your requiry.
Applications
Green SiC is primarily for honing stones and grinding wheels, limited lapping and electrical applications. It is also used in various refractories.
Our powders are also used for wiresawing semiconductor materials, lapping, fine bonded and coated application, refractory, precision ceramics, composites and other critical applications. Material is available for hot pressing, sintering and other forming techniques.
Packing Available
1MT big bags;
25kg×40 pp bags into 1MT big bags;
25kg×40 pp bags on one Standard wood pallet or Euro-pallet;
25kg×40 craft paper bags on one Standard wood pallet or Euro-pallet;
Moreover, we could provide packing as customer’s request, including different marks, etc.
