Product Details:
|
| Application: | Plate Heat Exchangers Under Strong Acid And Alkali Corrosion | Type: | D, E&F, U, W, SG, SGR |
|---|---|---|---|
| Material: | Green Silicon Carbide | Color: | Black |
| Product Name: | SiC Protection Sleeve | ||
| Highlight: | 500mm Width SiC Protection Sleeve,800mm SiC Protection Sleeve,Customized Silicon Carbide Protection Sleeve |
||
Silicon carbide impeller

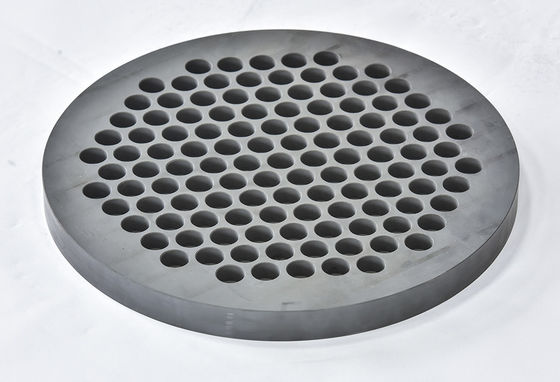

silicon carbide heat exchanger plate is made by direct isostatic pressing, pressure-free sintering. Various structural shapes can be manufactured according to the design requirements, the minimum channel up to 1mm.
Typical applications
Plate heat exchangers under strong acid and alkali corrosion.
Application industries: fine chemical industry, pharmaceutical industry, environmental protection engineering.
Features and advantages
Silicon carbide heat exchanger plate dimensional accuracy ±1.0mm, thickness ±0.1mm.
Silicon carbide heat exchanger plate thermal conductivity up to 140W/m•K, with excellent heat transfer efficiency.
Silicon carbide heat exchanger plate has a comprehensive corrosion resistance, can be used in sulfuric acid, hydrochloric acid, sulfuric acid, hydrofluoric acid and a variety of mixed acid, life is much longer than graphite and metal materials.
Silicon carbide heat exchanger plate is factory for strict size, surface fluorescence penetrant testing.
Silicon carbide heat exchanger plate can be sealed by sealing ring, mirror, or on request can be high temperature diffusion welding seal, with excellent pressure resistance.
Specifications
Width maximum size up to 500mm, length up to 800mm.
The heat exchange shape will be customized according to customer drawings.
Material performance sheet

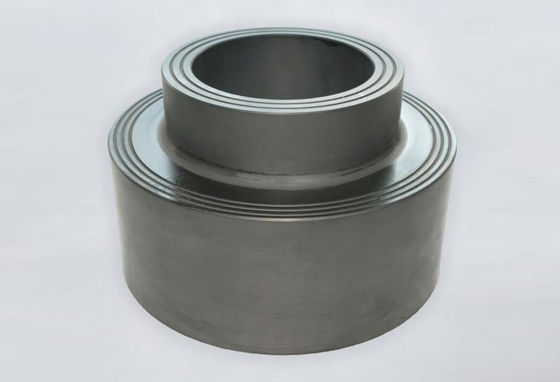

Silicon carbide sleeve
