Product Details:
|
| Features: | SiC Head Has Comprehensive Corrosion Resistance Properties, Can Be Used In Sulfuric Acid, Hydrochloric Acid, Sulfuric Acid, Hydrofluoric Acid And A Variety Of Mixed Acids, Life Is Much Longer Than Graphite And Metal Materials | Application: | Block Hole Heat Exchanger Under Strong Acid And Strong Alkali Corrosion |
|---|---|---|---|
| Specification: | Maximum Size Of Outer Diameter Up To 300mm, Height Up To 200mm | Product: | Silicon Carbide Head |
| Highlight: | 99% Silicon Carbide Ceramics Head,200mm Height Silicon Carbide Ceramics,Corrosion Resistance Silicon carbide head |
||

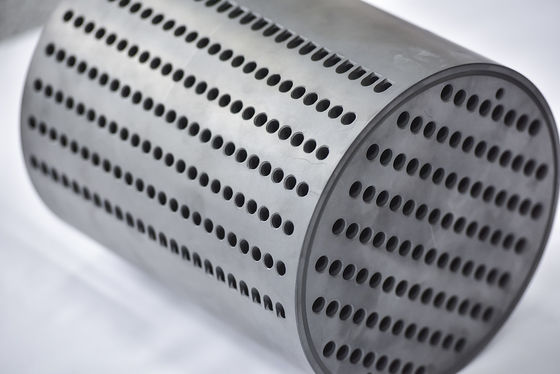

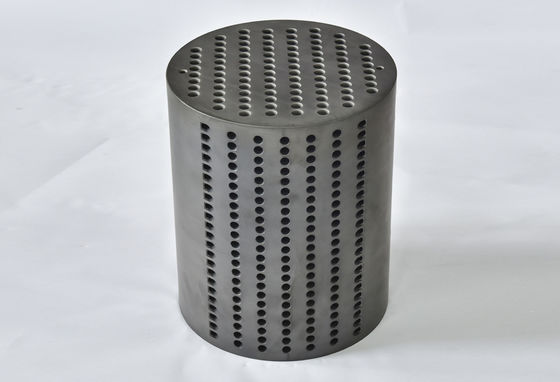

Silicon carbide head is made of direct iso-static pressure and pressures-free sintering, and it is matched with the silicon carbide block hole to form the silicon carbide block hole heat exchanger. The inlet and outlet size and sealing method can be designed according to the design requirements.
Typical applications
Block hole heat exchanger under strong acid and strong alkali corrosion.
Application industries: fine chemical industry, pharmaceutical industry, environmental protection engineering.
Features and advantages
Silicon carbide head size accuracy ±1.0mm, thickness ±0.1mm, can also be finished according to customer requirements, higher accuracy.
SiC head has comprehensive corrosion resistance properties, can be used in sulfuric acid, hydrochloric acid, sulfuric acid, hydrofluoric acid and a variety of mixed acids, life is much longer than graphite and metal materials.
SiC head design has a waterline seal that is compressed tight with a corrosion resistant material.
Silicon carbide head is second only to diamond in hardness and can be used in a variety of conditions with particle erosion. Compared to graphite head, the life of CoreSiC ® SP head is more than 5 times longer.
SiC heads are factory tested for size, water pressure resistance (40BAR), air pressure resistance (15BAR) and surface fluorescence penetration.
Specifications
Maximum size of outer diameter up to 300mm, height up to 200mm.
By the end of 2021, the maximum outer diameter can reach 600mm, and the height can reach 200mm.
The shape and sealing method of the head will be customized according to customer drawings.
Material performance sheet
Silicon carbide head
