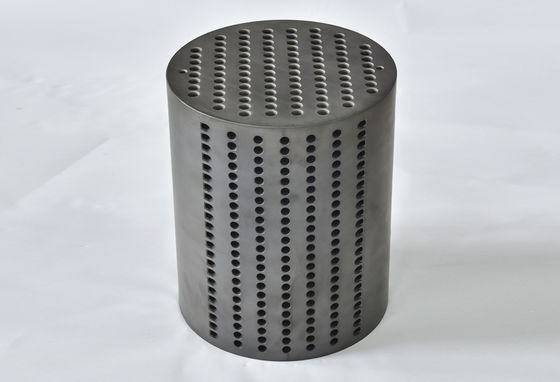

SIC HEAT EXCHANGER BLOCK HOLE, THE WALL OF THE VERTICAL HOLE AND HORIZONTAL HOLE TO ACHIEVE TWO MEDIA HEAT TRANSFER

Typical applications

• Block hole heat exchanger under strong acid and strong alkali corrosion.

• Application industries: fine chemical industry, pharmaceutical industry, environmental protection engineering.

Features and advantages

• Silicon carbide heat exchanger block hole size accuracy ±1.0mm, thickness ±0.1mm, can also be finished according to customer requirements, higher accuracy.

• Silicon carbide heat exchanger blocks have excellent heat transfer efficiency with a thermal conductivity of up to 140W/m•K.

• Silicon carbide heat exchange block hole has a comprehensive corrosion resistance, can be used in sulfuric acid, hydrochloric acid, sulfuric acid, hydrofluoric acid and a variety of mixed acid, life is much longer than graphite and metal materials.

• SiC Heat Exchanger Holes are designed with sealing waterlines and are pressure-sealed with a corrosion resistant material.

• Silicon carbide heat exchange block holes are factory tested for strict dimensions, water pressure resistance (40BAR), air pressure resistance (15BAR) and surface fluorescence penetration.

Specifications

• At present, the maximum size of the outer diameter can reach 300mm, and the height can reach 300mm.

• By the end of 2021, the maximum outer diameter can reach 600mm, and the height can reach 400mm.

• The hole size ranges from 6mm-30mm, and the hole wall thickness ranges from 2.5-5mm.

• The shape and sealing method of the hole of the heat exchange block are customized according to customer drawings.

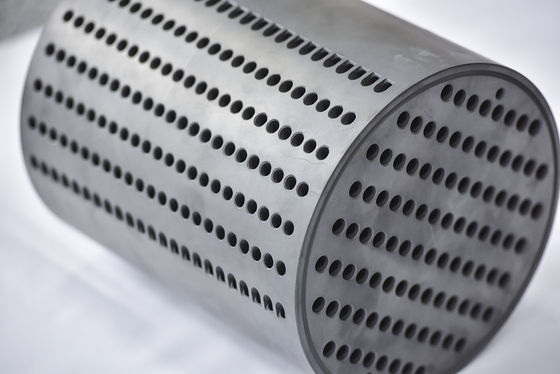

SiC heat exchanger block hole
