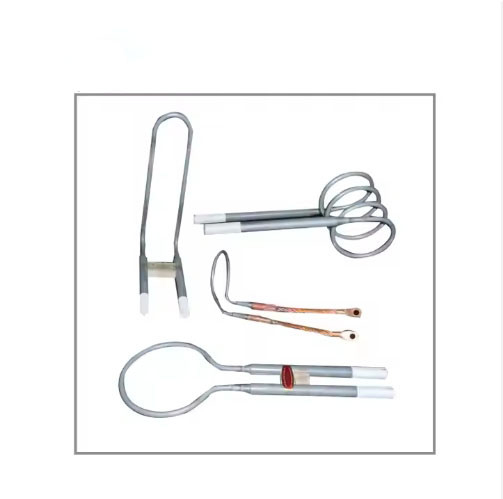

1800°C U Shape MoSi2 Heating Element For Zirconia Sintering

Large Image : 1800°C U Shape MoSi2 Heating Element For Zirconia Sintering

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	1/pcs
Price:	5/usd/pcs
Packaging Details:	Strong wooden box for Global shipping
Delivery Time:	3workdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000/pcs/month

Contact Now

1800°C U Shape MoSi2 Heating Element For Zirconia Sintering

Description

Highlight:

1800°C MoSi2 Heating Element

U Shape MoSi2 Heating Element

Zirconia Sintering MoSi2 Heating Element

Product Description

Mosi2 Heaters introduction:

Application: Widely used in research and production of glass, ceramic, refractory, metallurgy, steel-making, crystal, electronic parts, semiconductor material. The model including DM1700 (working temperature 1600℃) and DM1800 (working temperature 1700℃)

1800 C U type-New Technology electric heating elements MoSi2 heaters

Feature:

* The heater have the function of antioxidant and auto repair, and suitable to different kinds of continuous working during oxygen atmosphere.
* Moulding by heat process and model size is standard, so we can produce special shape and size according to customer requirement.
* Adopt special process for joint moulding with fasten welding and strong impact resistance.
* High density and excellent electrical conductivity, high heating rate and low power consumption.
* The old one and new one could using in series.

Specification:

Hot Zone Diameter D1	Cooling Zone Diameter D2	Hot Zone Length Le	Cooling Zone Length Lu	Central Distance A
3mm	6mm	80-300mm	80-500mm	25mm
4mm	9mm	80-350mm	80-500mm	25mm
6mm	12mm	80-800mm	80-1000mm	25-60mm
7mm	12mm	80-800mm	80-1000mm	25-60mm
9mm	18mm	100-1200mm	100-2500mm	40-80mm
12mm	24mm	100-1500mm	100-1500mm	40-100mm
Note: 1.Special size is customizable. 2.Delivery time only need 3 days for normal size
Model: DM1700 (working temperature 1600℃) and DM1800(working temperature 1700℃)
Please confirm the D1, D2,Le,Lu,A before order.

Products Description

1800 C U type-New Technology electric heating elements MoSi2 heaters

Product packaging and shipping

Foam+carton+wooden box, very strong enough for shipping.

1800 C U type-New Technology electric heating elements MoSi2 heaters
