Customizable Silicon Carbide Heating Elements For Oven

Customizable Silicon Carbide Heating Elements For Oven
Customizable Silicon Carbide Heating Elements For Oven Customizable Silicon Carbide Heating Elements For Oven Customizable Silicon Carbide Heating Elements For Oven Customizable Silicon Carbide Heating Elements For Oven Customizable Silicon Carbide Heating Elements For Oven Customizable Silicon Carbide Heating Elements For Oven

Large Image :  Customizable Silicon Carbide Heating Elements For Oven

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1/pcs
Price: 5/usd/pcs
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/pcs/month
Contact Now

Customizable Silicon Carbide Heating Elements For Oven

Description
Highlight:

Silicon Carbide Heating Elements

,

Oven Silicon Carbide Heating Elements

Product Description
Customizable Silicon Carbide Heating Elements For Oven 0
Outer Diameter (mm)
Hot zone ( mm)
Cold zone (mm)
Overall length(mm)
Range of resistance
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0

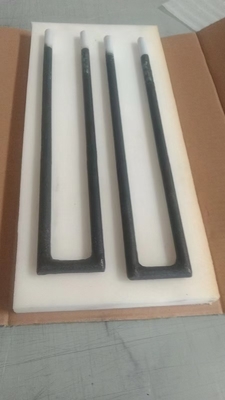

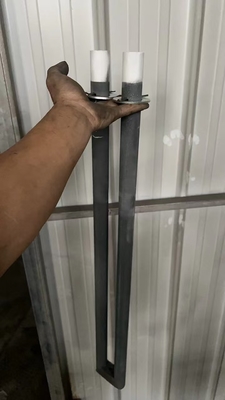

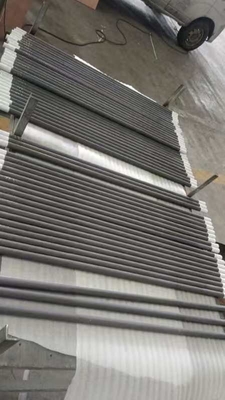

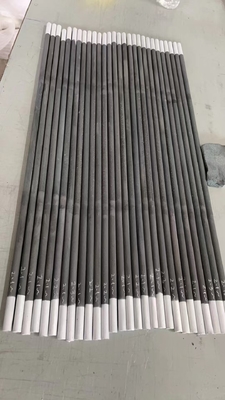

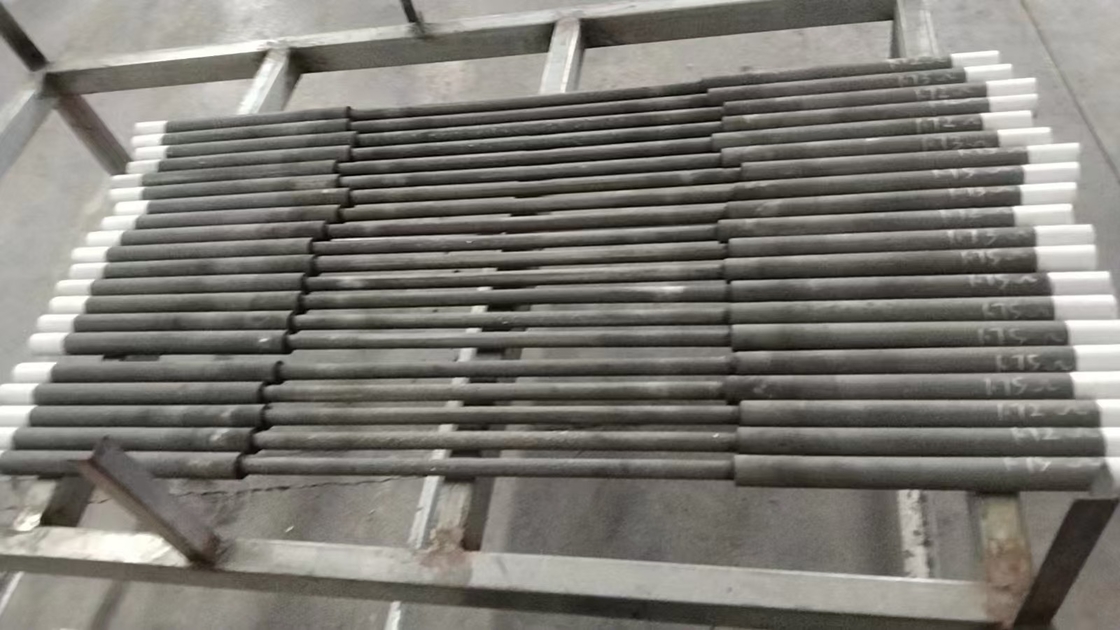

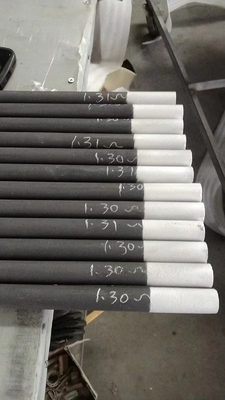

Photo Shows
Customizable Silicon Carbide Heating Elements For Oven 1

Features of silicon carbide rod

1 withstands as high as 1600°C
2 high strength and excellent shock resistance
3 heat source is free of noise and air pollution
4 anti-oxidization, anti- corrosion
5 easy to installation and maintenance

How to order ? Pls provide this informations:

1 Type: rod, U, W, H, spiral and double-spiral types
2 OD,HZ,CZ,OL
3 If type U or type W, please mark terminal distance
4 If you have special requirements about resistance, please inform resistance
5 Quantity

Application

Thermoforming & Vacuum Forming Machines
PVC Pipe Belling / Socketing Machines
Hot Stamping Machines
Heat Therapy Equipment
Shrink Packaging

Tag:

1800 C Service Temperature Corundum Bricks,

99.51% Al2O3 High Alumina Refractory Bricks,

3.1g/Cm3 AZS Bricks
