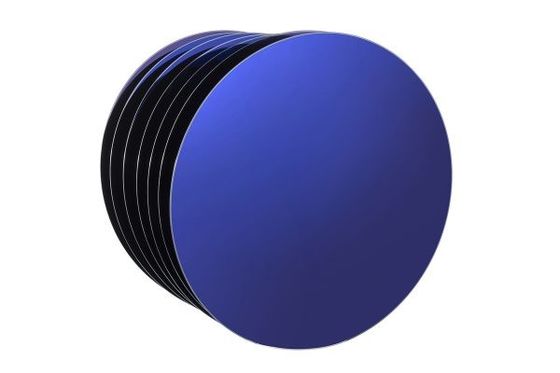

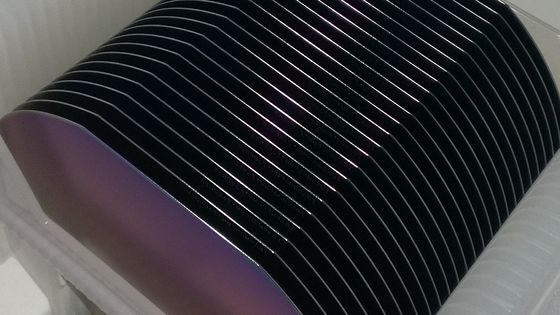

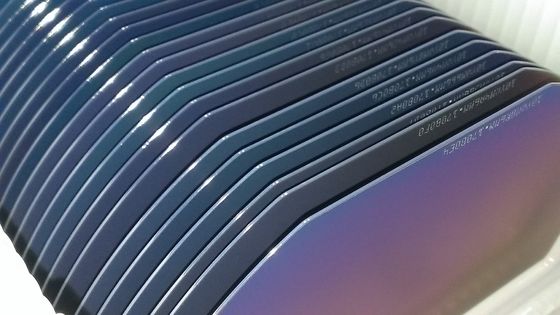

2 Inch To 4 Inch Ge Wafer To Micro Electronics And Opto Electronics Industry

2 Inch To 4 Inch Ge Wafer To Micro Electronics And Opto Electronics Industry
2 Inch To 4 Inch Ge Wafer To Micro Electronics And Opto Electronics Industry 2 Inch To 4 Inch Ge Wafer To Micro Electronics And Opto Electronics Industry 2 Inch To 4 Inch Ge Wafer To Micro Electronics And Opto Electronics Industry

Large Image :  2 Inch To 4 Inch Ge Wafer To Micro Electronics And Opto Electronics Industry

Product Details:
Place of Origin: CHINA
Brand Name: ZG
Certification: CE
Model Number: MS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD10/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month

2 Inch To 4 Inch Ge Wafer To Micro Electronics And Opto Electronics Industry

Description
Application: Semiconductor Device , Microelectronics , Sensor , Solar Cell , IR Optics. Diameter: Ø 2" / Ø 3" / Ø 4"
Thickness: 500 Um ~ 625 Um Grade: Electronics Grade
Highlight:

4 Inch Ge Wafer

,

2 Inch Ge Wafer

,

2 inch germanium wafer

Ge wafer to micro-electronics and opto-electronics industry in diameter range from 2 inch to 4 inch



We are a worldwide supplier of single crystal Ge wafer ( Germanium wafer ) and single crystal Ge ingot , we have a strong advantage in providing Ge wafer to micro-electronics and opto-electronics industry in diameter range from 2 inch to 4 inch . Ge wafer is an elemental and popular semiconductor material , due to its excellent crystallographic properties and unique electric properties , Ge wafer is widly used in Sensor , Solar cell and Infrared optics applications . We can provide low dislocation and epi ready Ge wafers to meet your unique germanium needs . Ge wafer is produced as per SEMI. standard and packed in standard cassette with vacuum sealed in clean room enviroment , with a good quality control system , We are dedicated to providing clean and high quality Ge wafer products . We can offer both electronics grade and IR grade Ge wafer , please contact us for more Ge product information



Single Crystal Germanium Wafer Capability

SWI can offer both electronics grade and IR grade Ge wafer and Ge ingot , please contact us for more Ge product information .


Conductivity Dopant Resistivity
( ohm-cm )
Wafer Size
NA Undoped >= 30 Up to 4 inch
N type Sb 0.001 ~ 30 Up to 4 inch
P type Ga 0.001 ~ 30 Up to 4 inch

Applications:

Semiconductor device , Microelectronics , Sensor , Solar cell , IR optics.



Ge Wafer Properties


Chemical formula Ge
Crystal structure Cubic
Lattice parameter a=0.565754
Density ( g / cm3 ) 5.323
Thermal conductivity 59.9
Melting point ( °C ) 937.4



Product Specification


Growth Czochralski
Diameter Ø 2" / Ø 3" / Ø 4"
Thickness 500 um ~ 625 um
Orientation <100> / <111> / <110> or others
Conductivity P - type / N - type
Dopant Gallium / Antimony / Undoped
Resistivity 0.001 ~ 30 ohm-cm
Surface SSP / DSP
TTV <= 10 um
Bow / Warp <= 40 um
Grade Electronics grade
