Product Details:
|
| Application: | Faraday Rotator, Isolator | Products: | Laser Crystal YAG |
|---|---|---|---|
| Advantage: | High Power Compatibility | Diameter: | Φ3-40mm |
| Highlight: | Dia 40mm Yag Laser Crystal,Isolator Yag Laser Crystal,Far Infrared Yag Laser Crystal |
||

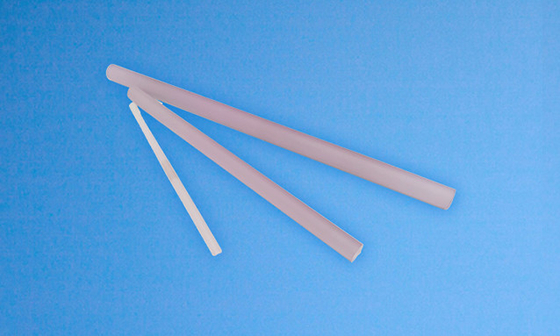

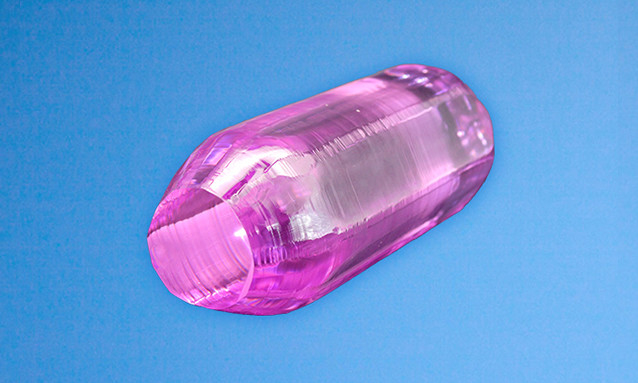

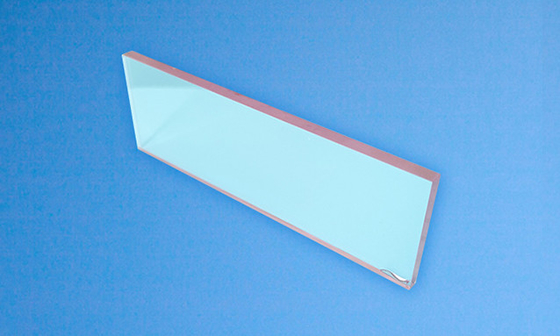

YAG is an earlier laser crystal. Because of its good basic properties, Nd: YAG is still widely used in near and far infrared solid-state laser and its frequency doubling and frequency tripling applications.
Main advantages:
· Low laser threshold
· High gain, high power
· Good optical properties
· The absorption of 1064nm light wave is less
· Good thermal conductivity and thermal shock characteristics
· Suitable for various working modes (continuous, pulse, Q-switch, mode locking)
Material properties
| Molecular formula | Nd:Y3Al5O12 |
| Growth method | Czochralski |
| Lattice constant | a=12.01Å |
| Density | 4.5g/cm³ |
| Hardness | 8.5 Mohs |
| Melting point | 1970℃ |
| Refractive index | 1.82 |
Technical parameter
| Size range | Φ3-40mm |
| Doping ratio | 0.3%-1.5% |
| Diameter tolerance | ±0.05mm |
| Length tolerance | ±0.1mm |
| Chamfering | <0.1*45° |
| Flatness | <λ/10@633nm |
| Parallelism | <10′ |
| Perpendicularity | <15′ |
| Wavefront distortion | <λ/8@633nm |
| 12.Surface quality | 10/5 |
