Product Details:
|
| Application: | Medical Imaging,Nuclear Energy And High Energy Physics, Scanning Electron Microscope (SEM) | Products: | Cerium Doped Gadolinium Aluminum Gallium Garnet (CE: GAGG) |
|---|---|---|---|
| Advantage: | High Density | Diameter: | Φ3-40mm |
| Highlight: | Doped Gadolinium Aluminum Gallium Garnet,GAGG Gadolinium Aluminum Gallium Garnet,GAGG Scintillation Crystal |
||

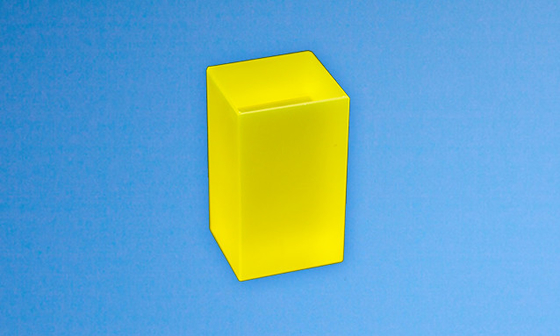

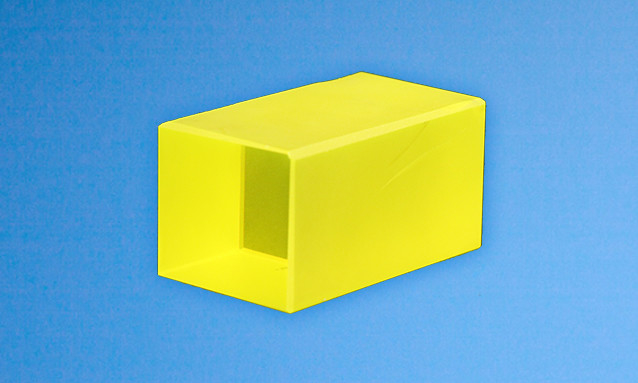

Cerium doped gadolinium aluminum gallium garnet (CE: GAGG) is a kind of crystal with excellent scintillation properties. CE: GAGG crystal is characterized by high density, high transmittance, large effective atomic number, high light yield, fast decay time, good energy resolution and stable physicochemical properties. Compared with the traditional scintillation crystal materials, the comprehensive performance is more excellent, and has the advantages of price and environmental protection. It has a wide range of applications in medical imaging, safety inspection, high energy physics, nuclear physics and other fields.
Main advantages:
High density
High light output
High energy resolution
No self radiation, no deliquescence
Application:
Medical imaging: X-ray computed tomography (CT), positron emission tomography (PET), etc
security check
Nuclear energy and high energy physics
Scanning electron microscope (SEM)
Material properties
| Molecular formula | Ce:Gd3Al2Ga3O12 |
| Growth method | Czochralski |
|
Atomic number |
54.4 |
| Density | 6.63g/cm³ |
| Hardness | 8 Mohs |
| Melting point | 1850℃ |
|
Coefficient of thermal expansion |
TBA*10-6 |
Technical parameter
| Crystal orientation | <0.5° |
|
Diameter tolerance |
±0.05mm |
|
Parallelism |
<30″ |
| Perpendicularity | <15′ |
| Chamfering | <0.1*45° |
| verticalityMaximum size | Maxψ60mm |
