Product Details:
|
| MAX TEMPERATURE:: | 1700°C / 1800°C | DIAMETER:: | 3/6, 4/9, 6/12, 7/12, 9/18, 12/24mm |
|---|---|---|---|
| COOLING ZONE LENGTH:: | 80 - 1500mm | SHAPE:: | Special Shape |
| HEATING ZONE LENGTH:: | 80 - 1500mm | MOLYBDENUM PURITY:: | 99.9% High Purity |
| Highlight: | Heat Treating MoSi2 Heating Elements,Annealing MoSi2 Heating Elements,Hardening MoSi2 Heating Elements |
||
MoSi2 heating elements for Heat treating, forging, annealing, hardening and deoxidizing, brazing

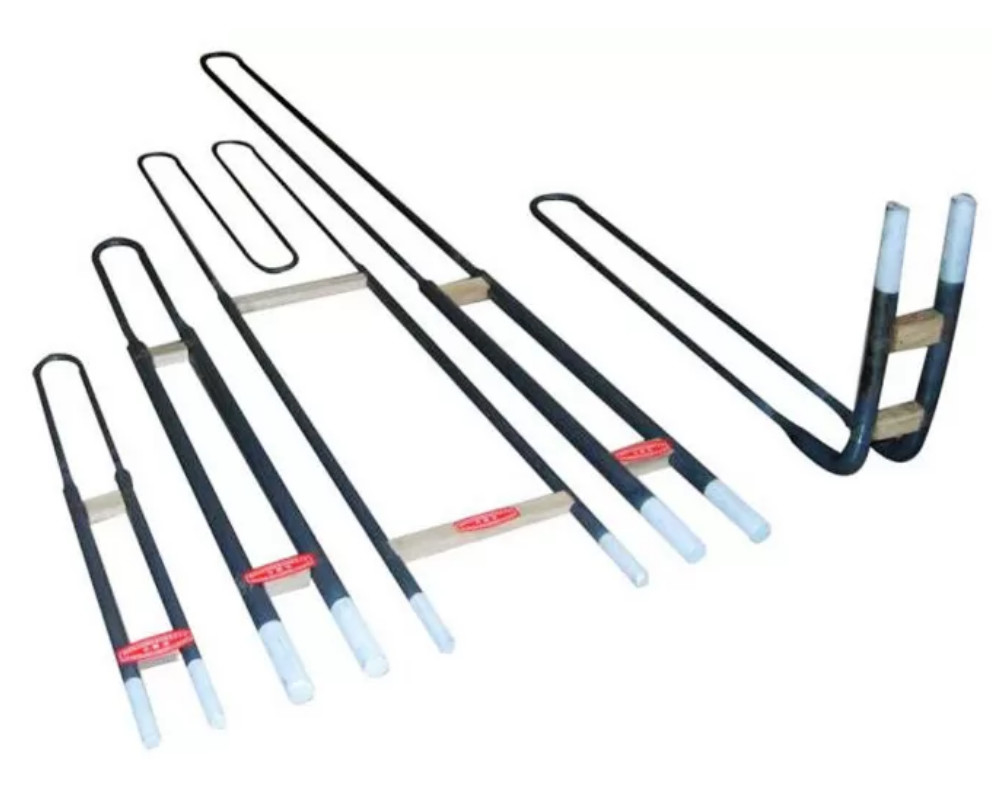

U Type Heater MoSi2 Rod Introduction:
1. U type heater MoSi2 rod heating elements is a kind of resistance heating element made from Molybdenum Disilicide.
2. It’s mainly used in high temperature furnaces and kilns as heaters.
3. It can be used in air and various gases environments.
4. Working temperature of MoSi2 heating element is 1300C to 1800C.
5. Widely used in the industries of metallurgy, glass, ceramic refractory,
crystal electronic device, industrial furnace manufacture, etc
U Type Heater MoSi2 Rod Character:

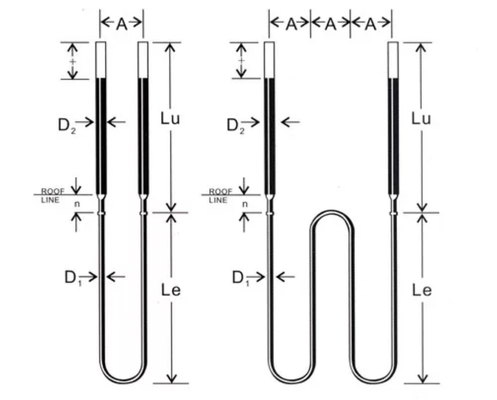

* Shape: I, U, UL, W, WL, Irregular
* Diameter: 3/6, 4/9, 6/12, 7/12, 7/14, 9/18, 12/24(mm)
* Temperature: 1700°C, 1750°C, 1800℃
U type heater MoSi2 rod heating element have good resistance characteristic, so it is an ideal heating material to replace traditional heating elements.
At room temperature, its resistivity is very low, with the increase of temperature, the resistance increases sharply. The advantages of heating up fast and low power consumption are obvious.
In normal operating circumstances, the resistance of the element is constant, so the old and new components can be mixed.
Physcial property of U type Heater MoSi2 rod heating element:
| Density | Bending Strength | Hardness | Apparent Porosity | Water Absorption | Elongation | Fracture Toughness | Compressive Strength |
| 5.8g/cm3 | 350Mpa | 12.0Gpa | ±2% | 0 | 4% | 4.5Mpa.m1/2 | 650Mpa |
Operation temperature of U ytpe Heater MoSi2 rod heating element in different atmosphere
| Atmosphere | 1700 Type | 1800 Type |
| Air | 1700C | 1800C |
| N2 | 1600C | 1700C |
| He | 1600C | 1700C |
| -80°C Dry H2 | 1150C | 1150C |
| -20°C Wet H2 | 1450C | 1450C |
| 10%CO2, 50%CO, 15%H2 | 1600C | 1700C |
| 40%CO2, 20%CO | 1400C | 1450C |
| Cracked and Partially Burnt Ammnia | 1400C | 1450C |
Packaging & Shipping of Super U type Heater MoSi2 rod
Package: Package: Synthetic wooden case padded with foams
We also received OEM service; the package can be designed according to your requirements.
Shipping: By vessel or by plane from any Chinese port, Samples can be delivered by International express.
