Product Details:
|
| MAX TEMPERATURE:: | 1700°C / 1800°C | DIAMETER:: | 3/6, 4/9, 6/12, 7/12, 9/18, 12/24mm |
|---|---|---|---|
| COOLING ZONE LENGTH:: | 80 - 1500mm | SHAPE:: | Special Shape |
| HEATING ZONE LENGTH:: | 80 - 1500mm | MOLYBDENUM PURITY:: | 99.9% High Purity |
| Highlight: | MoSi2 Heating Elements For Diecasting,MoSi2 Heating Elements For Alloys,MoSi2 Heating Elements For Metals |
||

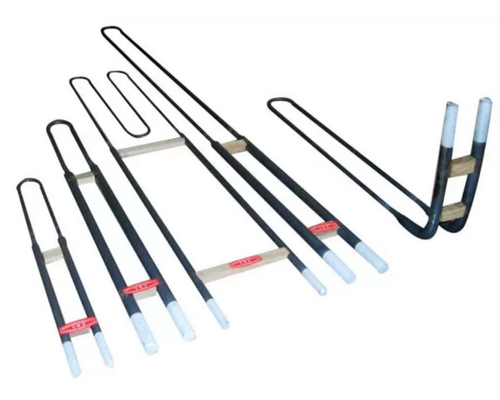

MoSi2 heating elements for diecasting, Non-ferrous metals and alloys

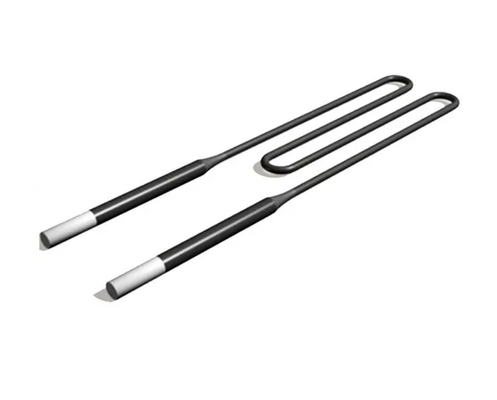

MoSi2 Heating Element Description
MoSi2 Heating Element are resistive heating elements based on molybdenum disilicide. The temperature generated by MoSi2 goes as high as 1700~1800°C in oxidation atmosphere. They can be widely used in such applications as sintering and heat treatment on electronic ceramics, structural ceramics, magnetic materials, flameproof materials, glass, metallurgy, etc.
MoSi2 Heating Element Application
The MoSi2 Heating Elements can be widely used in such applications as sintering and heat treatment on ceramics, magnet, glass, metallurgy, refractory, etc.
MoSi2 Heating Element Physical Properties:
Density g/cm3 | Bending Strength MPa | Hardness GPa | Compression Strength MPa | Water Absorption % | Heated Elongation % |
| 6.0±0.1 | 500 | 12 | ＞1500 | ≤0.2% | 4 |
Indicators in Different Atmospheres
Atmosphere | SP1700 | SP1800 |
| Air | 1700 | 1800 |
| N2 Nitrogen | 1600 | 1700 |
| Ar Ne Argon, Helium | 1600 | 1700 |
| Dry Hydrogen (dew point)-80℃ | 1150 | 1150 |
| Wet Hydrogen (dew point)-20℃ | 1450 | 1450 |
| Exogas (e.g. 10% CO2, 50% CO, 15%H2) | 1600 | 1700 |
| Exogas (e.g. 40% CO2, 20% CO) | 1400 | 1450 |
| Cracked and partially burnt ammonia | 1400 | 1450 |
Following should be provided when ordering L Type or Bent 90° MoSi2 Heating Elements:
Advantage
