Customizable 1800 degree MoSi2 muffle furnace heating element

I'm Online Chat Now

Customizable 1800 degree MoSi2 muffle furnace heating element

Customizable 1800 degree MoSi2 muffle furnace heating element
Customizable 1800 degree MoSi2 muffle furnace heating element Customizable 1800 degree MoSi2 muffle furnace heating element Customizable 1800 degree MoSi2 muffle furnace heating element Customizable 1800 degree MoSi2 muffle furnace heating element Customizable 1800 degree MoSi2 muffle furnace heating element Customizable 1800 degree MoSi2 muffle furnace heating element

Large Image :  Customizable 1800 degree MoSi2 muffle furnace heating element

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1/pcs
Price: 5/usd/pcs
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/pcs/month

Customizable 1800 degree MoSi2 muffle furnace heating element

Description
Highlight:

1800 Degree MoSi2 Heating Elements

,

Muffle Furnace MoSi2 Heating Elements

Product Description

MoSi2 heaters are resistive heating elements based on molybdenum disilicide. The temperature generated by MoSi2 goes as high as 1700~1800°C in oxidation atmosphere. They can be widely used in such applications as sintering and heat treatment on electronic ceramics, structural ceramics, magnetic materials, flameproof materials, glass, metallurgy, etc.


Atmosphere
The Maximum Using Temperature of Element
1700 Grade
1800 Grade
NO2,CO2,O2,Air
1700°C
1800°C
He,Ar,Ne
1650°C
1750°C
SO2
1600°C
1700°C
CO,H2
1500°C
1600°C
WetH2
1400°C
1500°C
DryH2
1350°C
1450°C
Photo Shows

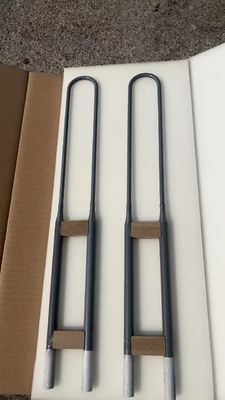

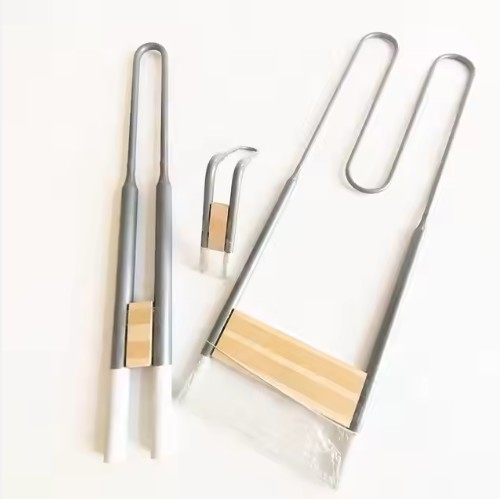

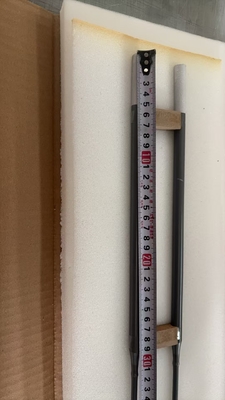

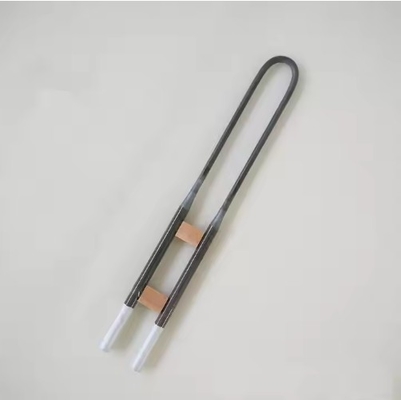

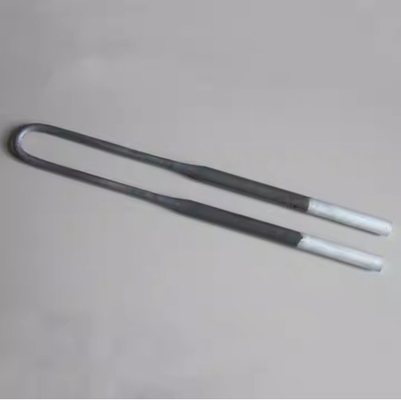

Customizable 1800 degree MoSi2 muffle furnace heating element 0
Customizable 1800 degree MoSi2 muffle furnace heating element 1
Customizable 1800 degree MoSi2 muffle furnace heating element 2
Customizable 1800 degree MoSi2 muffle furnace heating element 3
Customizable 1800 degree MoSi2 muffle furnace heating element 4

How to order ? Pls provide this informations:

1 Type: rod, U, W, H, spiral and double-spiral types
2 OD,HZ,CZ,OL
3 If type U or type W, please mark terminal distance
4 If you have special requirements about resistance, please inform resistance
5 Quantity

Application

The MoSi2 Heating Elements can be widely used in such applications as sintering and heat treatment on ceramics, magnet, glass, metallurgy, refractory, etc.

Customizable 1800 degree MoSi2 muffle furnace heating element 5

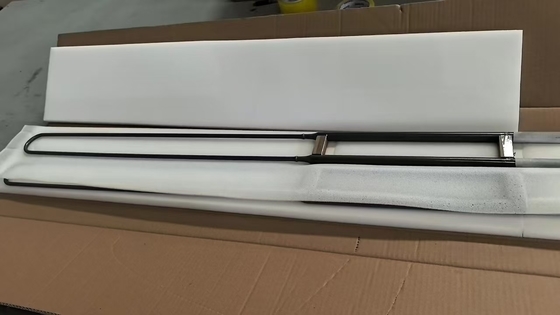

Packaging & Shipping

High quality MoSi2 heating elements U-Type for electric furnace

High quality MoSi2 heating elements U-Type for electric furnace
