1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace

I'm Online Chat Now

1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace

1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace

Large Image :  1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1/pcs
Price: 5/usd/pcs
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/pcs/month

1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace

Description
Highlight:

1900°C MoSi2 Heating Elements

,

High Purity MoSi2 Heating Elements

,

Dental Sintering Furnace MoSi2 Heating Elements

Product Description
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 0

High Purity MoSi2 Heating Element for Dental Sintering Furnace made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.

Products Show

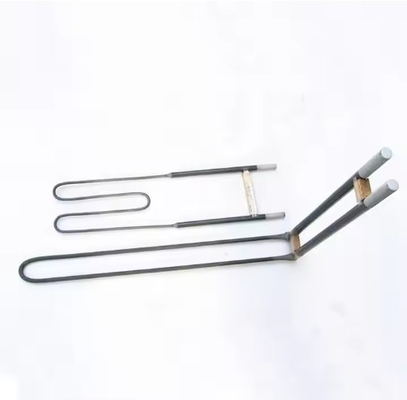

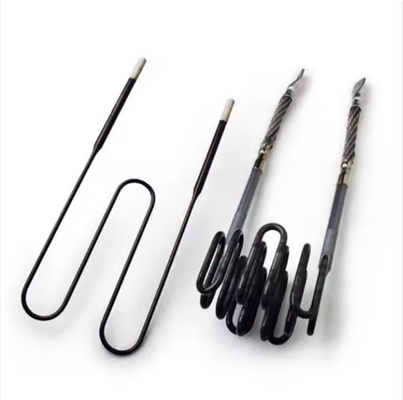

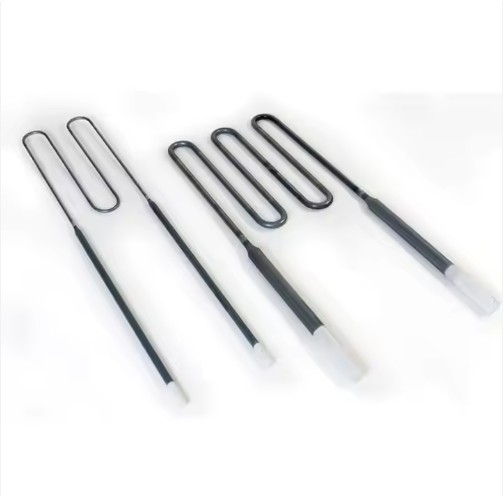

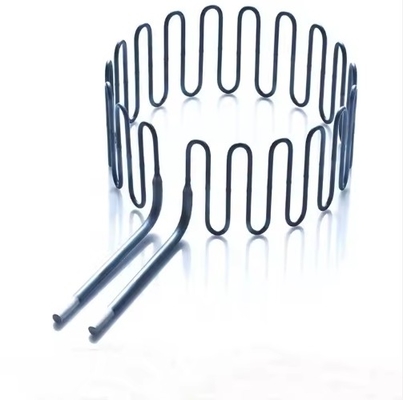

1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 1
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 2
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 3
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 4
Molybdenum disilicide MoSi2 rod heating element size:
1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .
4.Rod shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .
Molybdenum silicon heating elements specification:
Diameter of hot
zone
Diameter of cold
zone
Length of hot
zone
Length of cold
zone
Terminal center distance
3mm
6mm
80-300mm
80-500mm
25mm
4mm
9mm
80-350mm
80-500mm
25mm
6mm
12mm
80-800mm
80-1000mm
25-60mm
7mm
12mm
80-800mm
80-1000mm
25-60mm
9mm
18mm
100-1200mm
100-2500mm
40-80mm
12mm
24mm
100-1500mm
100-1500mm
40-100mm
How to order ?
Please tell us the following data of MoSi2 rod heating element
1.d = the diameter of hot zone ?
2.c = the diameter of cold zone ?
3.Le = the length of hot zone ?
4.Lu = the length of cold zone ?
How many pcs ?

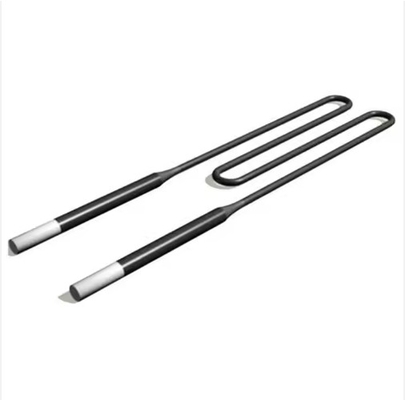

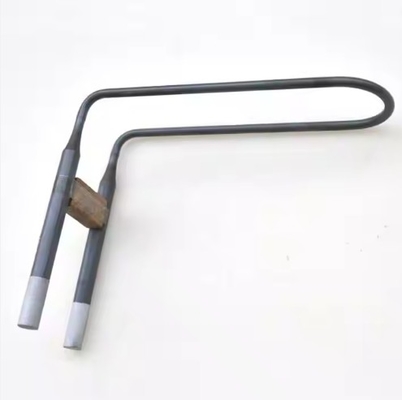

1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 5
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 6
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 7
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 8
Packing & Delivery

Packaging for MoSi2 Heating element
1) plastic bag + carton for MoSi2 Heating element
2) wooden box for MoSi2 Heating element

Shipping for heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available

1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 9
Checking each heater
1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 10

Choose the right box for the heaters

1700~1900°C High Purity MoSi2 Heating Elements For Dental Sintering Furnace 11

Exported Wooden case can protect the heaters very well
