High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

Large Image :  High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1/pcs
Price: 5/usd/pcs
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 3workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/pcs/month
Contact Now

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C

Description
Highlight:

High Temperature MoSi2 Heating Element

,

Lab Oven MoSi2 Heating Element

,

1800C MoSi2 Heating Element

Product Description

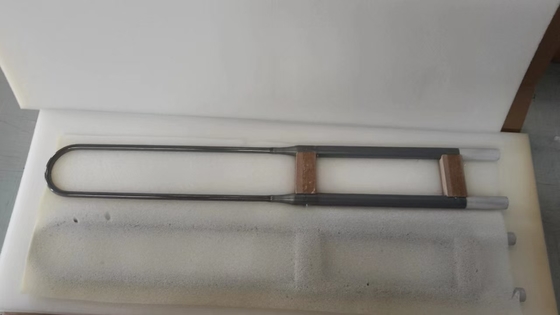

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 0
Molybdenum disilicide(MoSi2) heating element is one resistance heating component made from MoSi2 or as the basic material. When it's heated to high temperature under the oxidizing atmosphere, one dense MoSi2film will be formed on its surface to protect the element against oxidizing further. Therefore, the element has unique anti-oxidation property under high temperature atmosphere. The highest temperature can reach 1900°℃, the applicable temperature is between 500-1800℃.
Product Name
Maximun Element Working Temperature
Recommended Furnace Temperature
XR1800
1830℃(3326℉)
1700℃
XR1850
1850℃(3362℉)
1750℃
XR1900
1830℃(3326℉)
1800℃

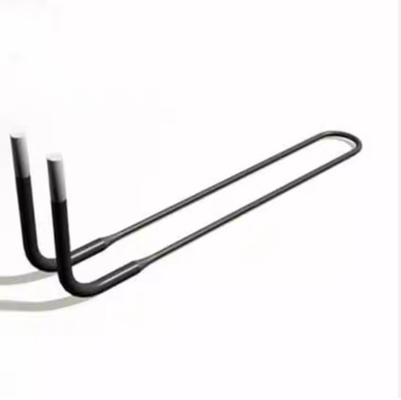

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 1

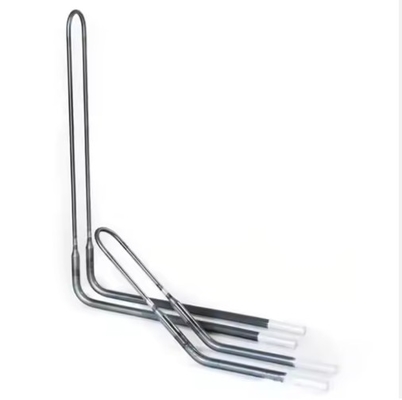

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 2
Volume Density
Bending Strength
Vickers-Hadness
Porosity Rate
Water Absortion
Hot Extensiblity
5.5-5.6kg/cm3
15-25kg/cm3
(HV)570kg/mm3
7.4%
1.2%
4%

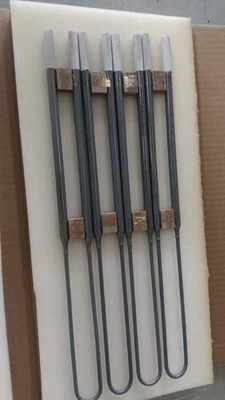

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 3
When quote, Please send us the size as D1/D2*Le*Lu*A(mm)

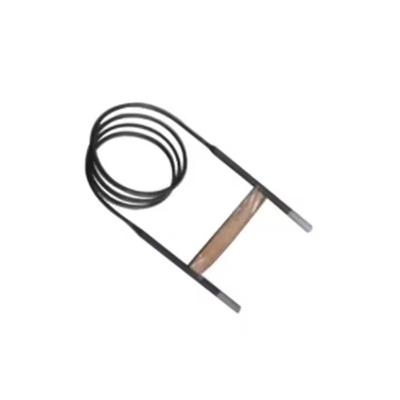

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 4
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 5
Atmosphere
The Max Using Temperature of Element
1700 Grade
1800 Grade
Air
1700℃
1800℃
Nitrogen
1600℃
1700℃
Argon, Helium
1600℃
1700℃
Hydrogen
1100-1450℃
1100-1450℃
N2/H2 95
1250-1600℃
1250-1600℃
Product Details

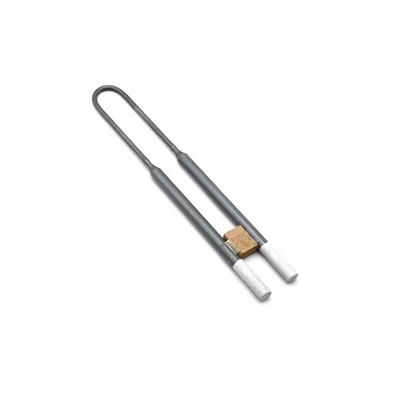

High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 6
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 7
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 8
High Temperature U Type Furnace Molybdenum Mosi2 Heating Element For Lab Oven Up To 1800C 9

Tag:

Furnace Molybdenum Disilicide Heating Element,

1700C MoSi2 Electric Heating Element,

Metallurgy Molybdenum Disilicide Heating Element
