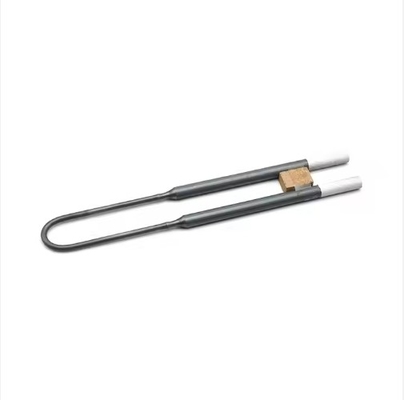

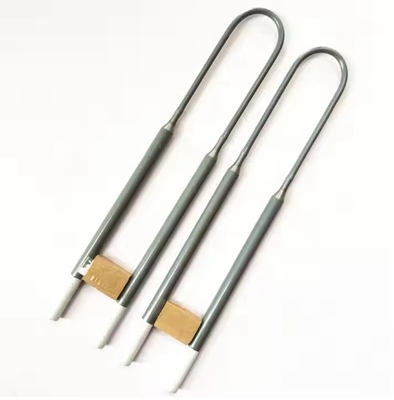

Mosi2 U Heater Heating Elements For Sintering Furnace

Mosi2 U Heater Heating Elements For Sintering Furnace
Mosi2 U Heater Heating Elements For Sintering Furnace Mosi2 U Heater Heating Elements For Sintering Furnace Mosi2 U Heater Heating Elements For Sintering Furnace

Large Image :  Mosi2 U Heater Heating Elements For Sintering Furnace

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD9/piece
Packaging Details: Strong wooden box for Global shipping
Delivery Time: 5-20work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

Mosi2 U Heater Heating Elements For Sintering Furnace

Description
Weight: Customized Feature: High Strength
Resistance: High Condition: New
Size: Customized Bulk Density: 5.8±0.1
Warranty: 1 Year Thermal Conductivity: High
Purity: 99.9% Structure: Mosi2
Working Temperature: Up To 1800c
Highlight:

Mosi2 u heater heating elements

,

Customized Mosi2 U Heater Heating Elements

Products Description
Mosi2 U Heater Heating Elements For Sintering Furnace 0
Mosi2 U Heater Heating Elements For Sintering Furnace 1
Mosi2 U Heater Heating Elements For Sintering Furnace 2
Mosi2 heating element is a type of resistance heating element composed of high purity molybdenum disilicide. When heated to a high temperature in an oxidizing atmosphere, a layer of compact quartz glass forms on the surface of the element which withstands
oxidation. In an oxidizing atmosphere, its maximum temperature can reach 1800℃, and its applicable temperature is 500-1700℃. It can be widely used as a heating element in high-temperature furnaces for a variety of industries including ceramics, magnets,glass, metallurgy, refractory, and many others.
Specification
Material Grade
1600/1700/1800/1850
Shape
U, I, W, UL
Hot zone length
100-300mm
Cold end length
150-300mm
Diameter
6-9mm
Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.

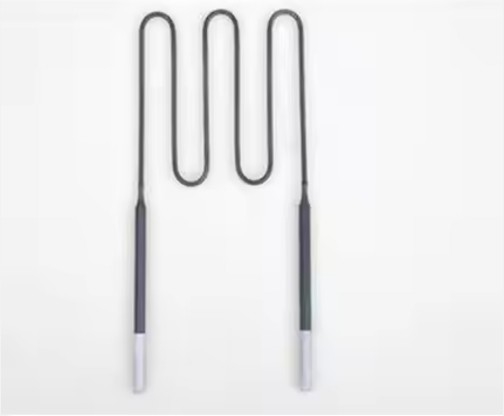

Types
Mosi2 U Heater Heating Elements For Sintering Furnace 3
Mosi2 U Heater Heating Elements For Sintering Furnace 4
Application:
Mosi2 U Heater Heating Elements For Sintering Furnace 5
Product packaging
Mosi2 U Heater Heating Elements For Sintering Furnace 6
